Windows OS Onboarding: Part 3 - Configuration Profiles

  • Updated


How to Create Configuration Profiles

Sign in to the Microsoft Endpoint Manager Admin Center:





Select

  • Platform: Windows 10 and later
  • Profile type: Templates
  • Template Type: Administrative templates
  • Create





Enter Profile Details:

  • Name: Enter a descriptive name for the policy (e.g., Mobile Guardian Microsoft Edge Browser Settings).
  • Description: Enter a description for the policy (optional but recommended).
  • Click Next

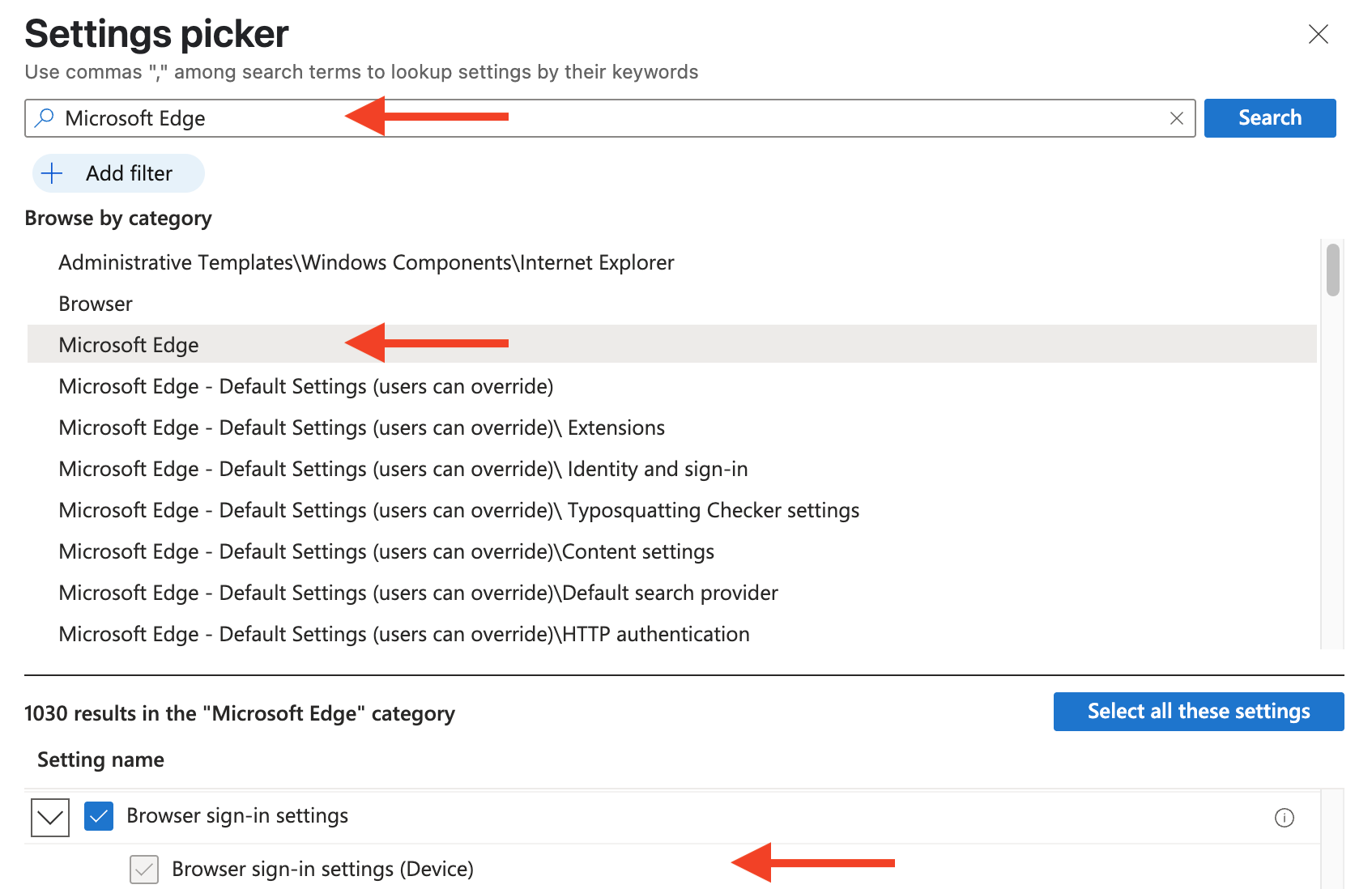

On the next page, click All Settings and search for the following settings:

  • Browser sign-in settings: Select the device-based setting for Microsoft Edge > Enable > Force users to sign in to use the browser > OK.



You will see the status of your selected setting change to enabled.





  • In the search bar search for; Configure whether a user always has a default profile automatically signed in with their work or school account: Select the device-based setting for Microsoft Edge > Enable > OK.





You will see the status of your selected setting change to enabled





  • In the search bar search for; Control where developer tools can be used: Select the user-based setting for Microsoft Edge > Enable > Allow using the developer tools > OK.



You will see the status of your selected setting change to enabled





#Note: Developer tools should only be enabled for initial testing and disabled for student devices.

  • Click Next.
  • Skip the Scope Tags section and click Next.

Assign the Profile:

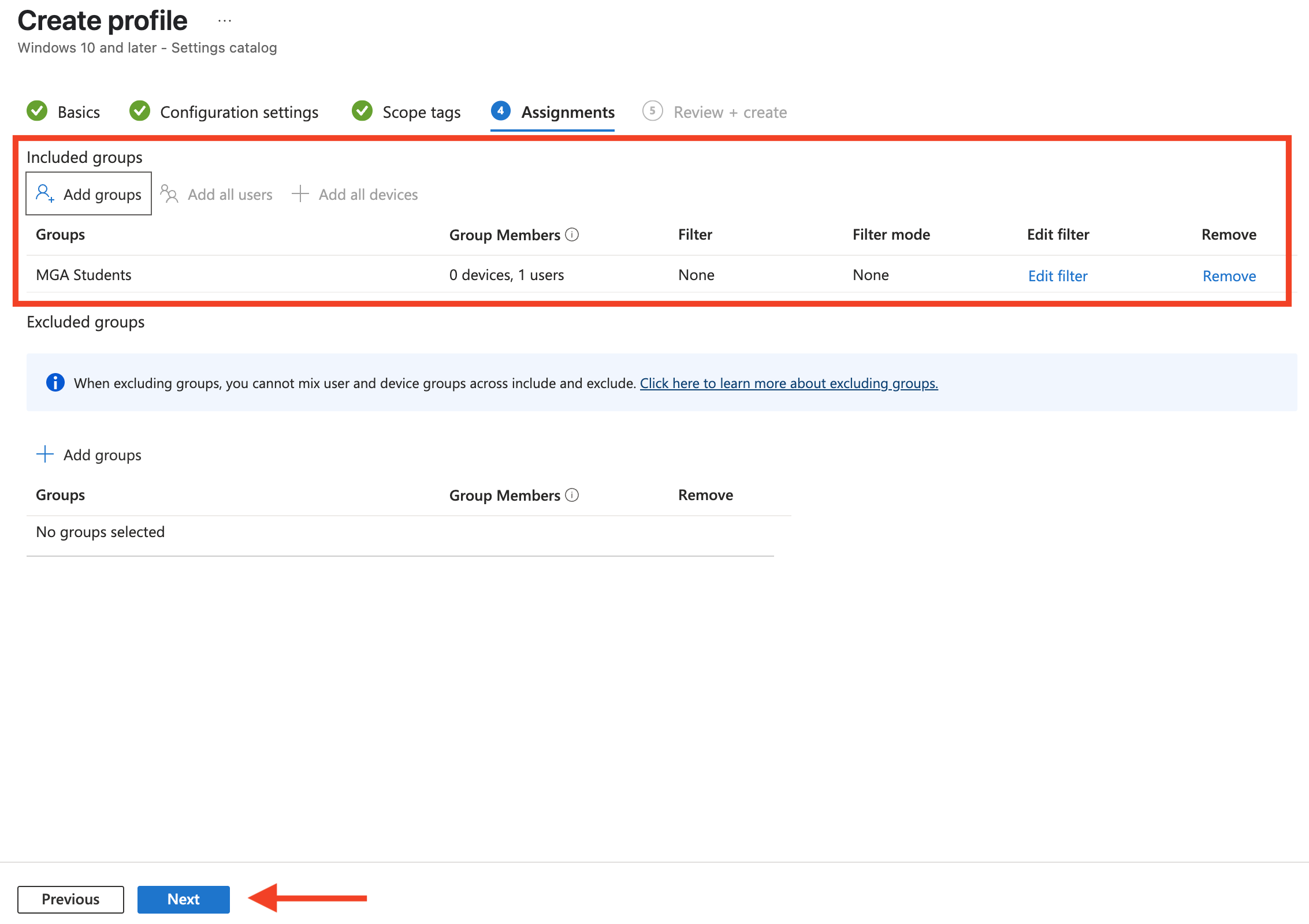

Under Assignments > Included groups > Add groups, select the group you want to apply the settings to (e.g., Students) > Select > Next.







Review and Create:

  • Review your settings and click Create.

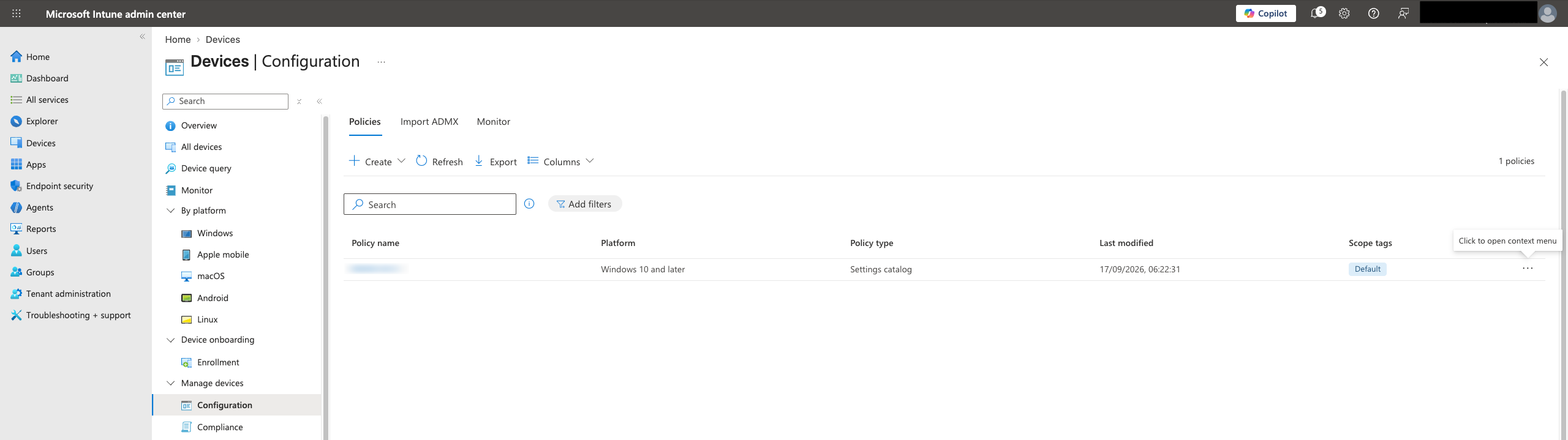

  • Refresh the page to see your newly created configuration profile.









Creating a Configuration Profile for Managed Edge Extensions

Create Profile for Managed Edge Extensions:

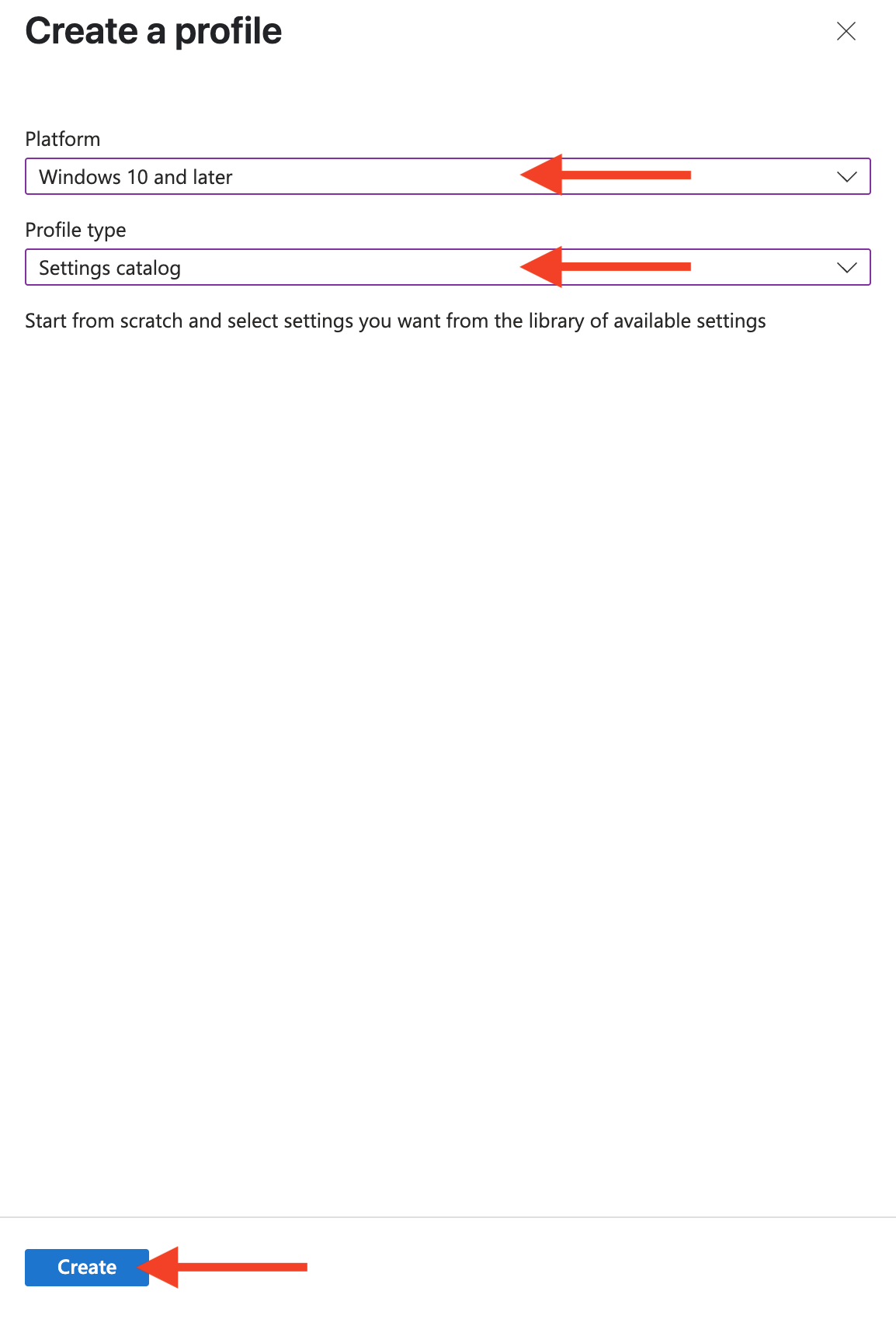

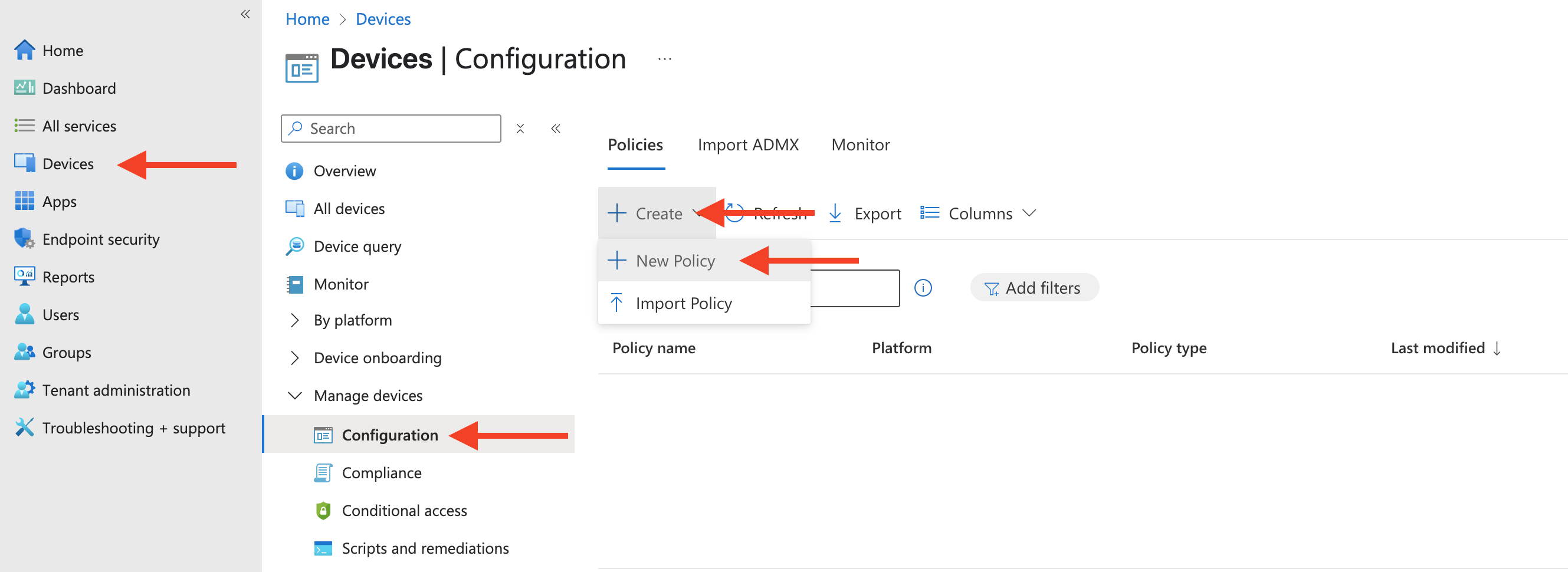

  • Go to Devices > Configuration profiles > Create profile.
  • Select your platform and profile type (e.g., Settings Catalog).
  • Click Create.

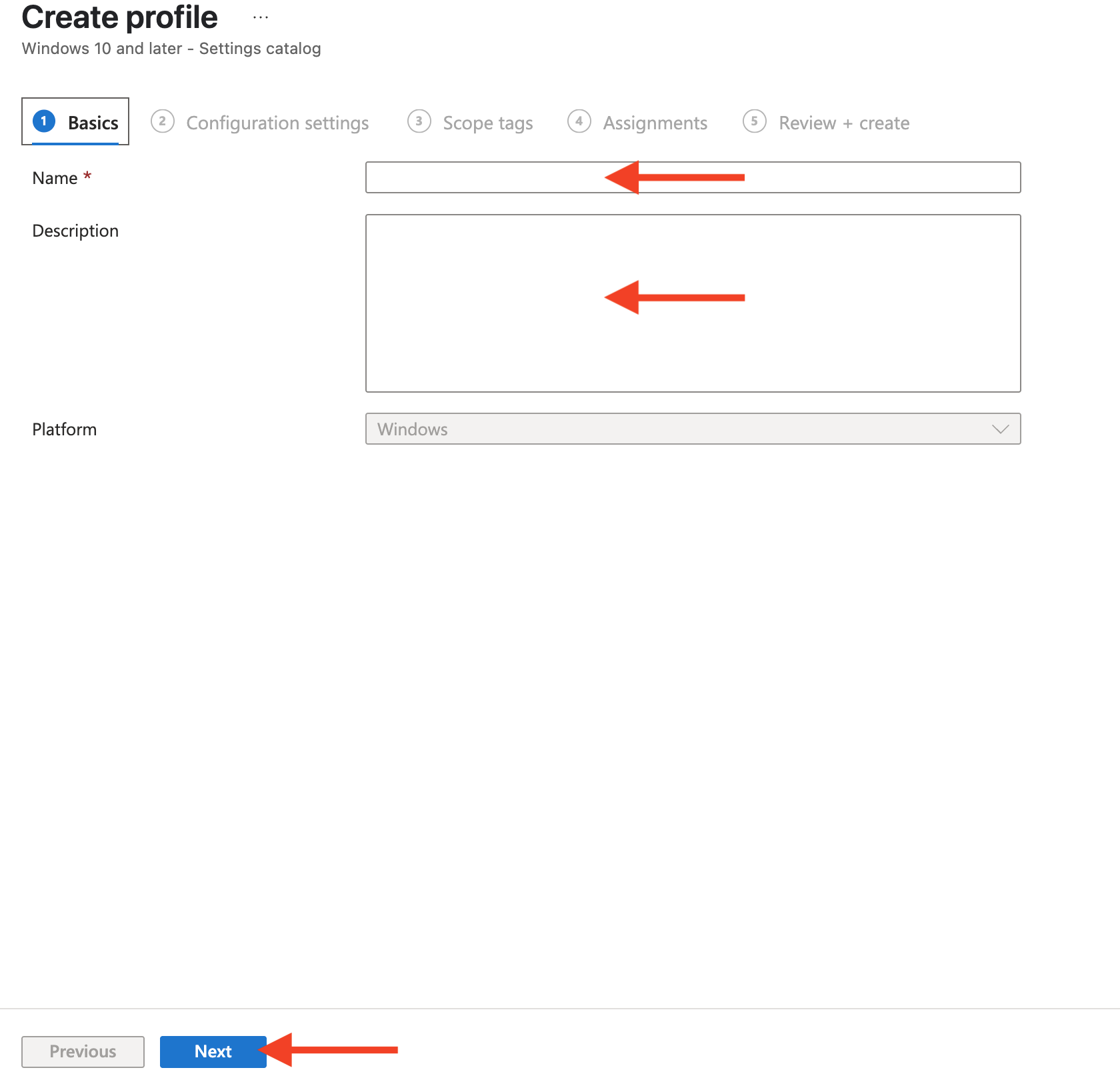

Enter Profile Details:

  • Name: Enter a descriptive name for the policy (e.g., Mobile Guardian Managed Edge Chromium Extensions).
  • Description Enter a description for the policy (optional but recommended).
  • Click Next.





Add Settings:

  • Click + Add settings.

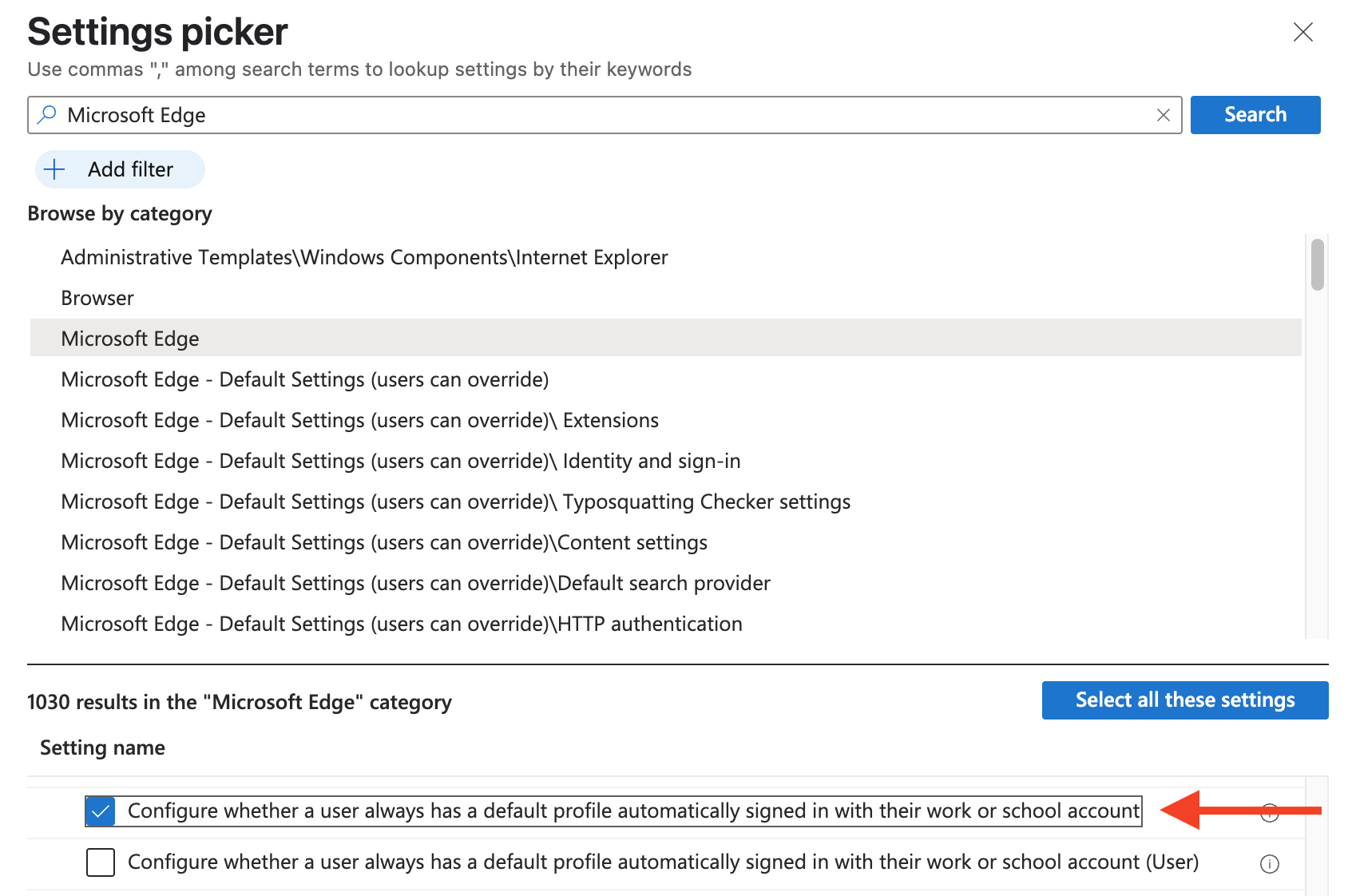

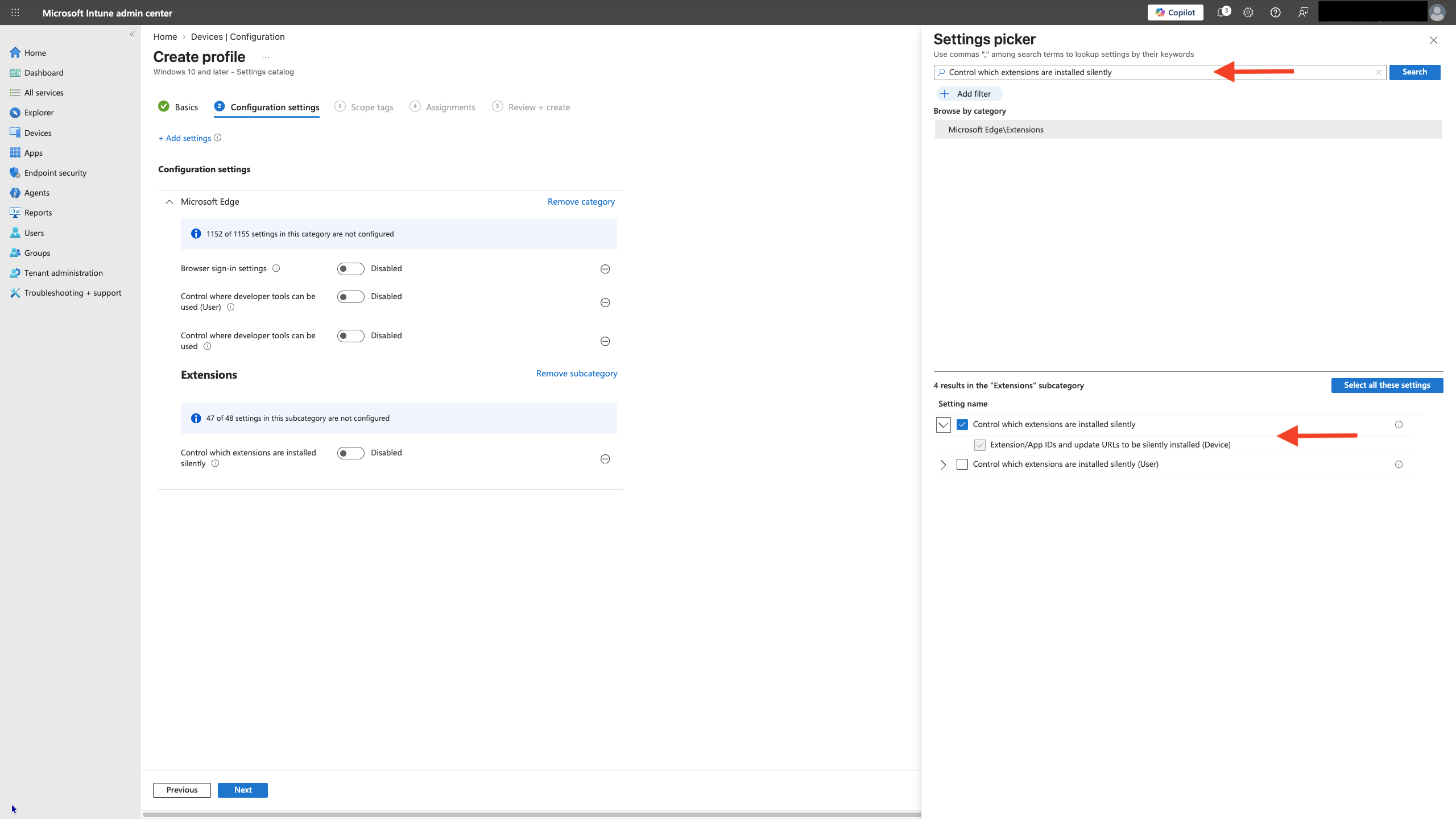

  • In the setting picker search bar, find and select the following settings:

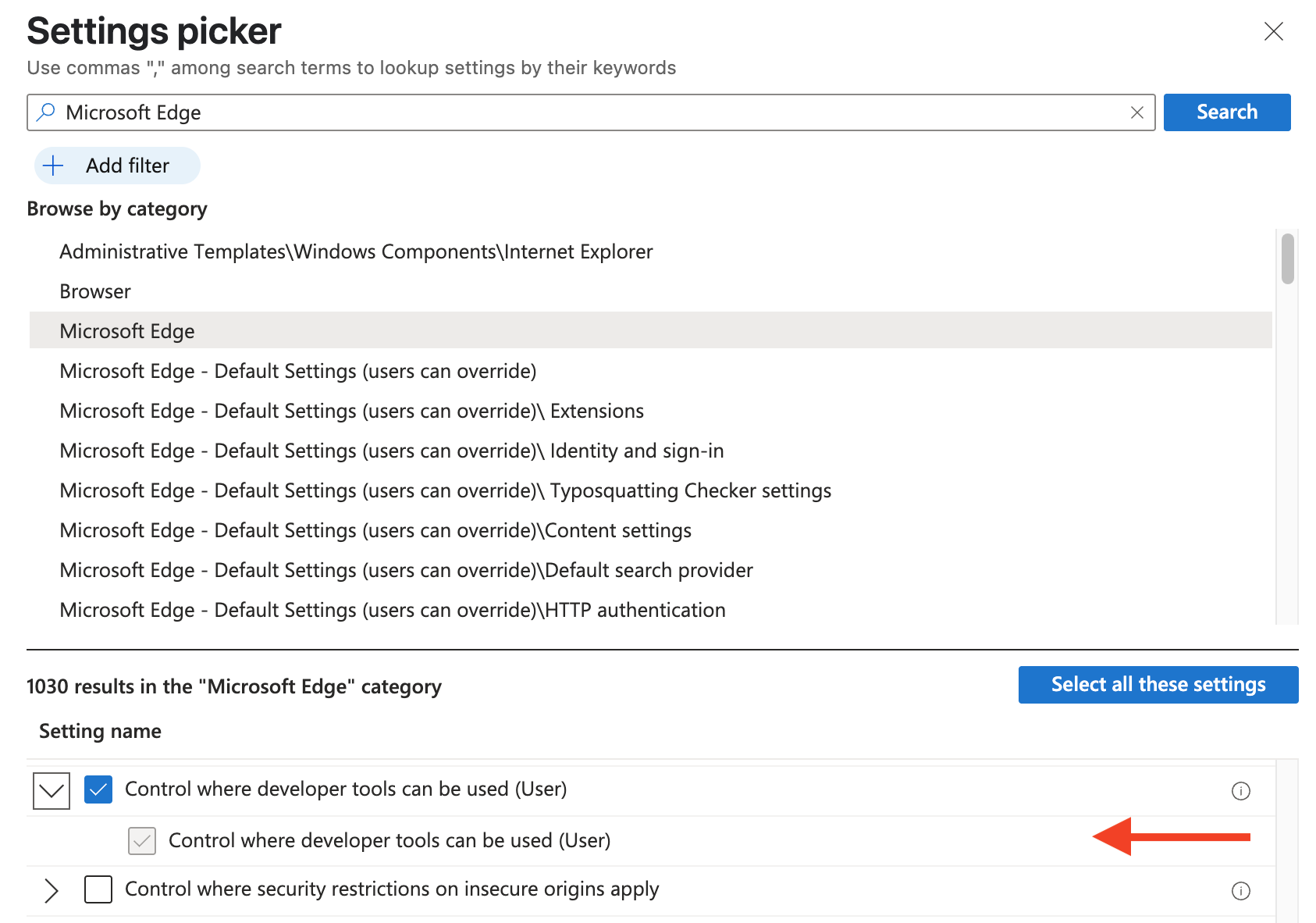

    • Control where developer tools can be used

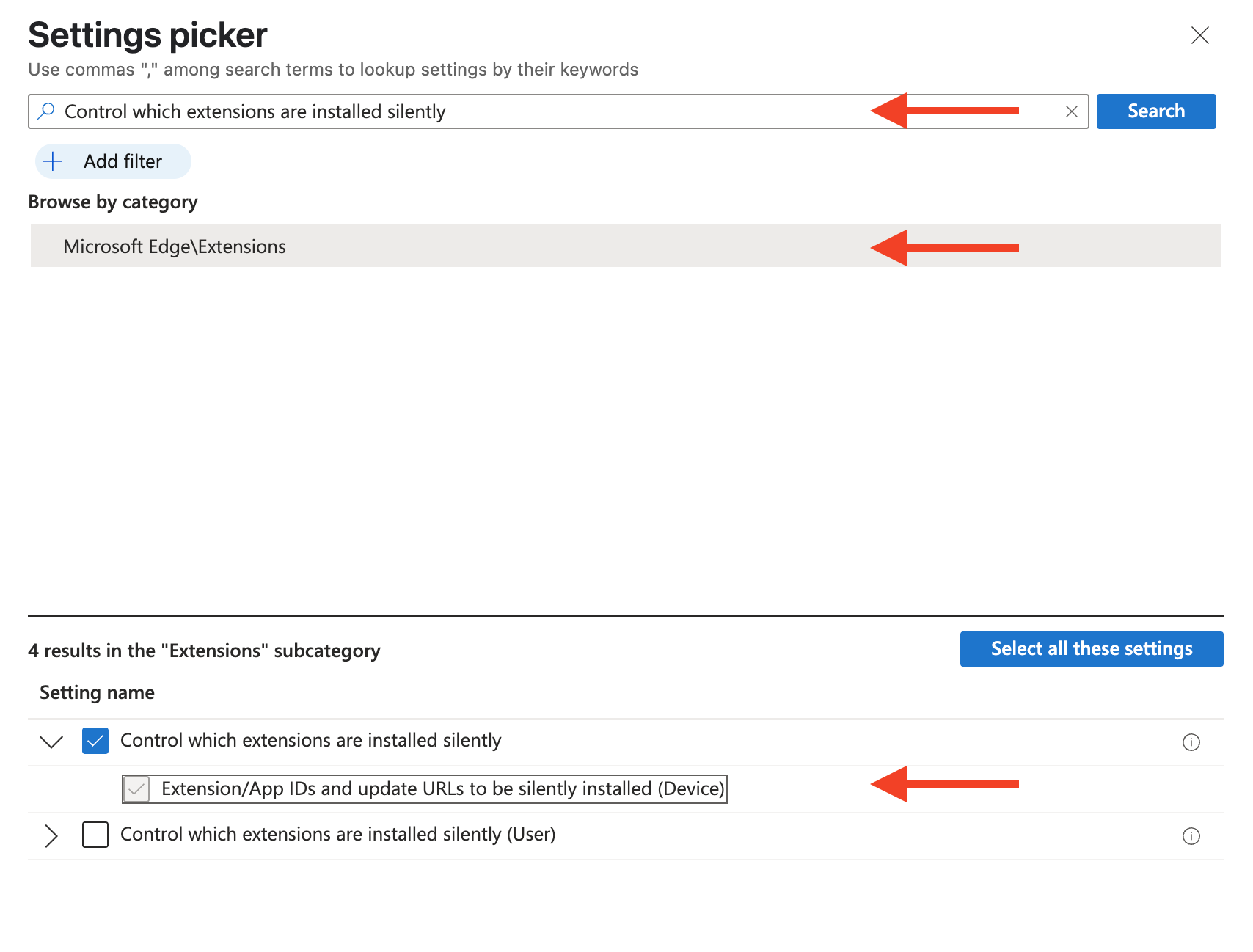

    • Control which extensions are installed silently

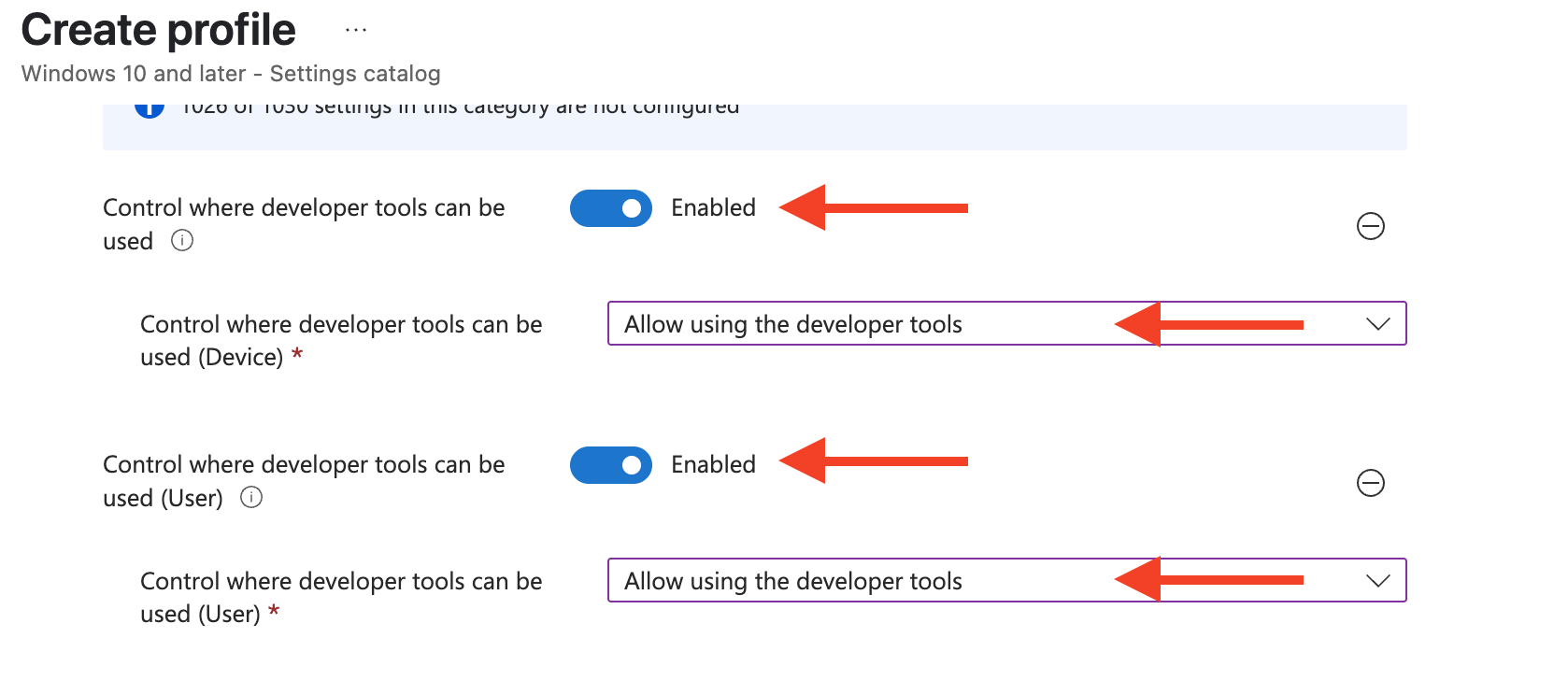

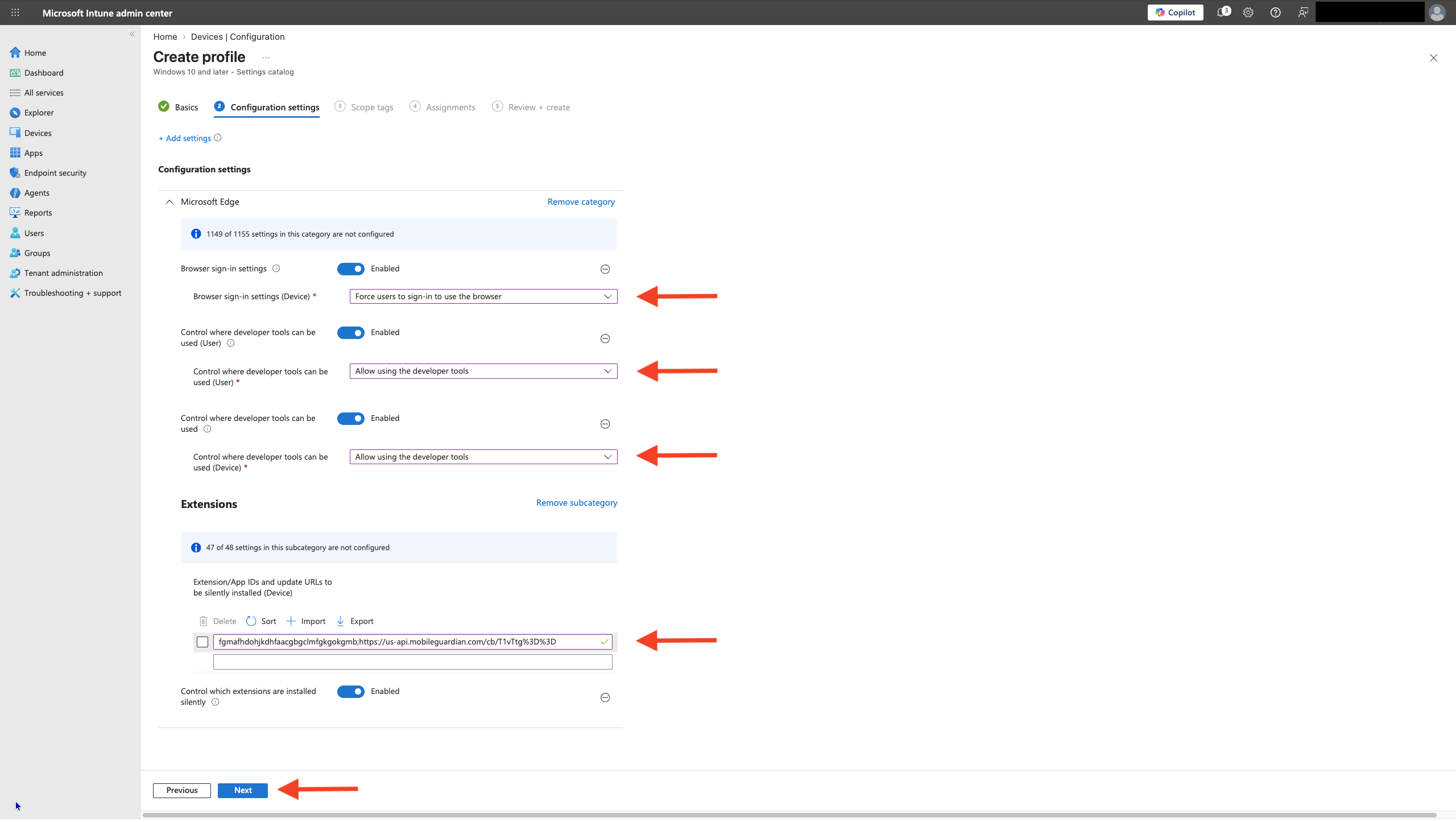

  • Configure your selected settings.

#Note: Developer tools should only be enabled for initial testing. It should be disabled everywhere for student devices

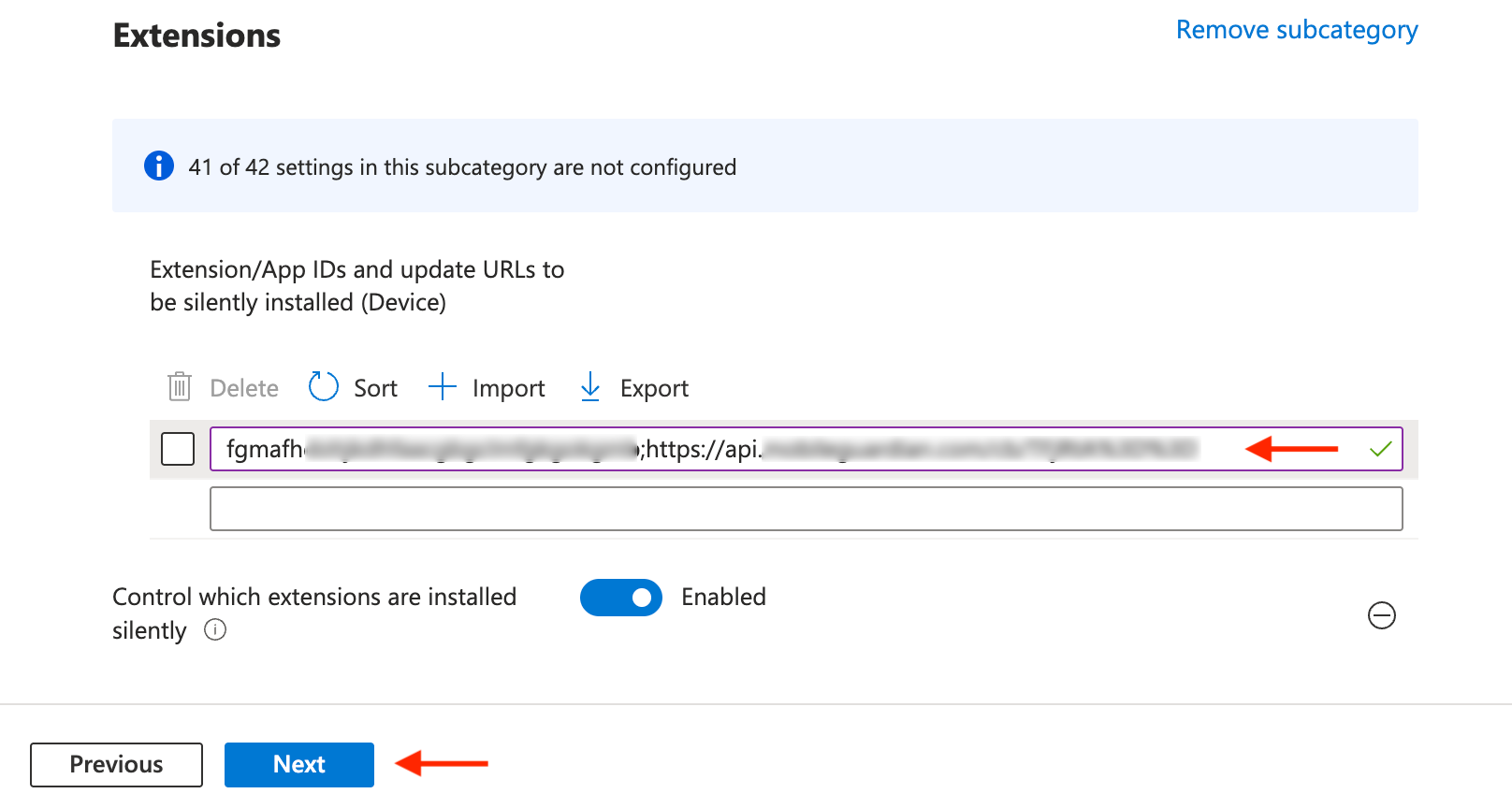

Configure Extensions:

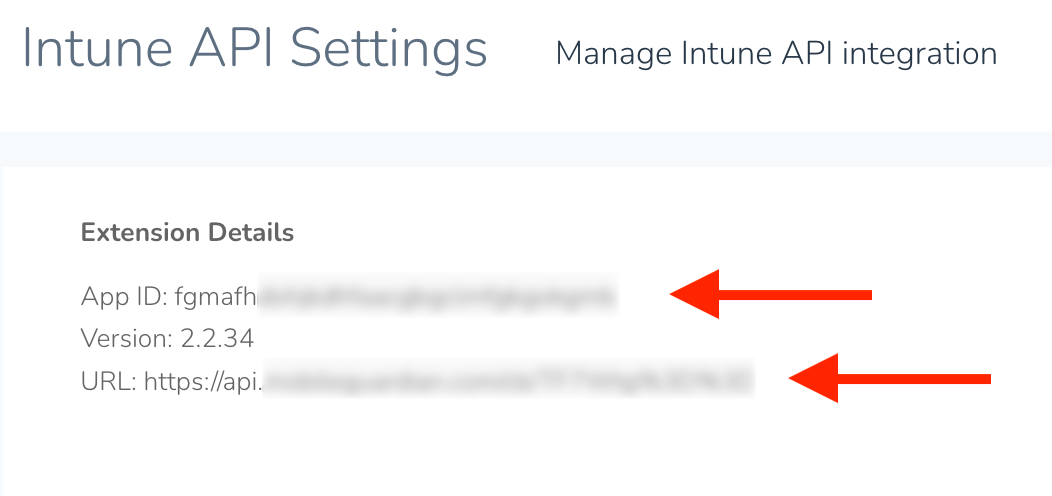

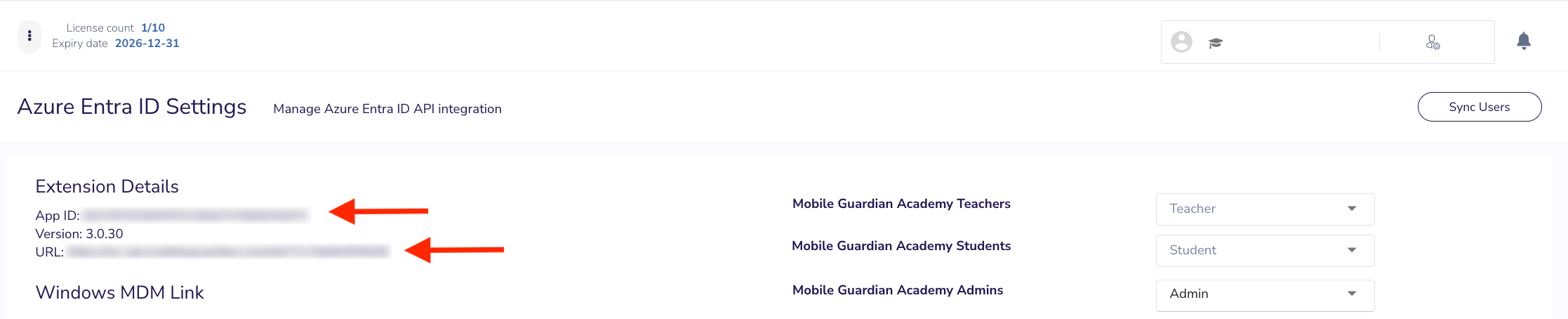

  • In the Extension/App ID field, enter your personalized App ID and URL, separated by a semicolon.
  • Click Next.







  • Skip the Scope Tags section and click Next.

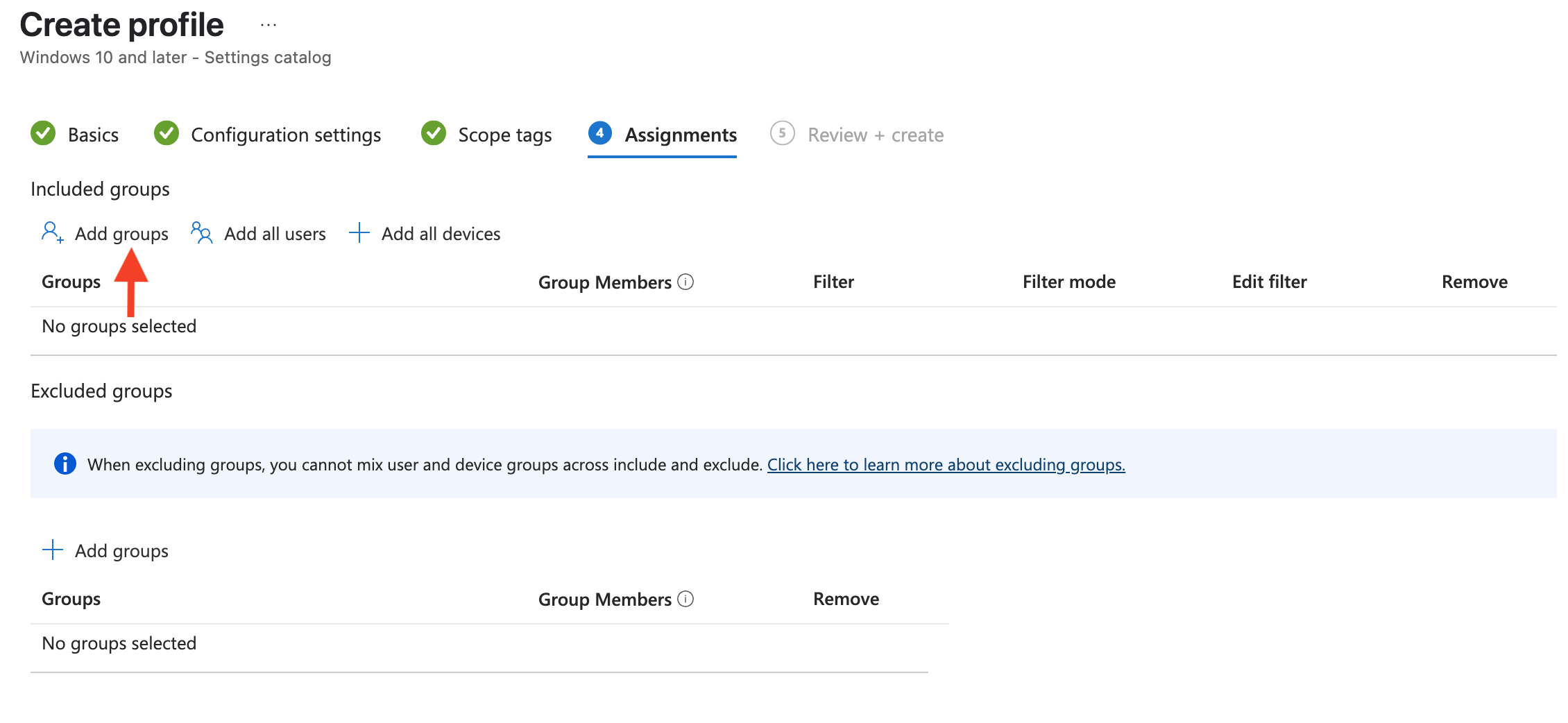

Assign the Profile:

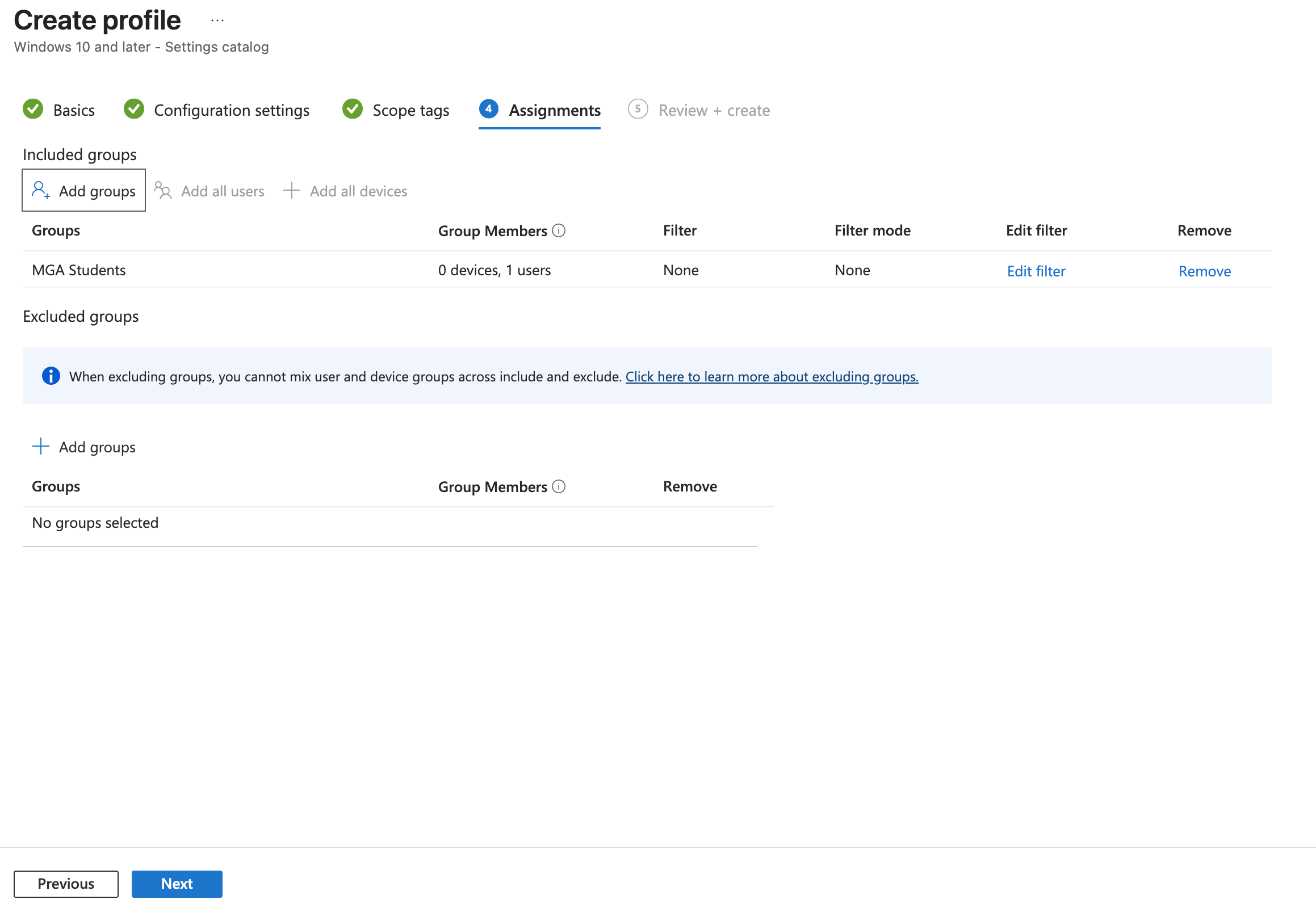

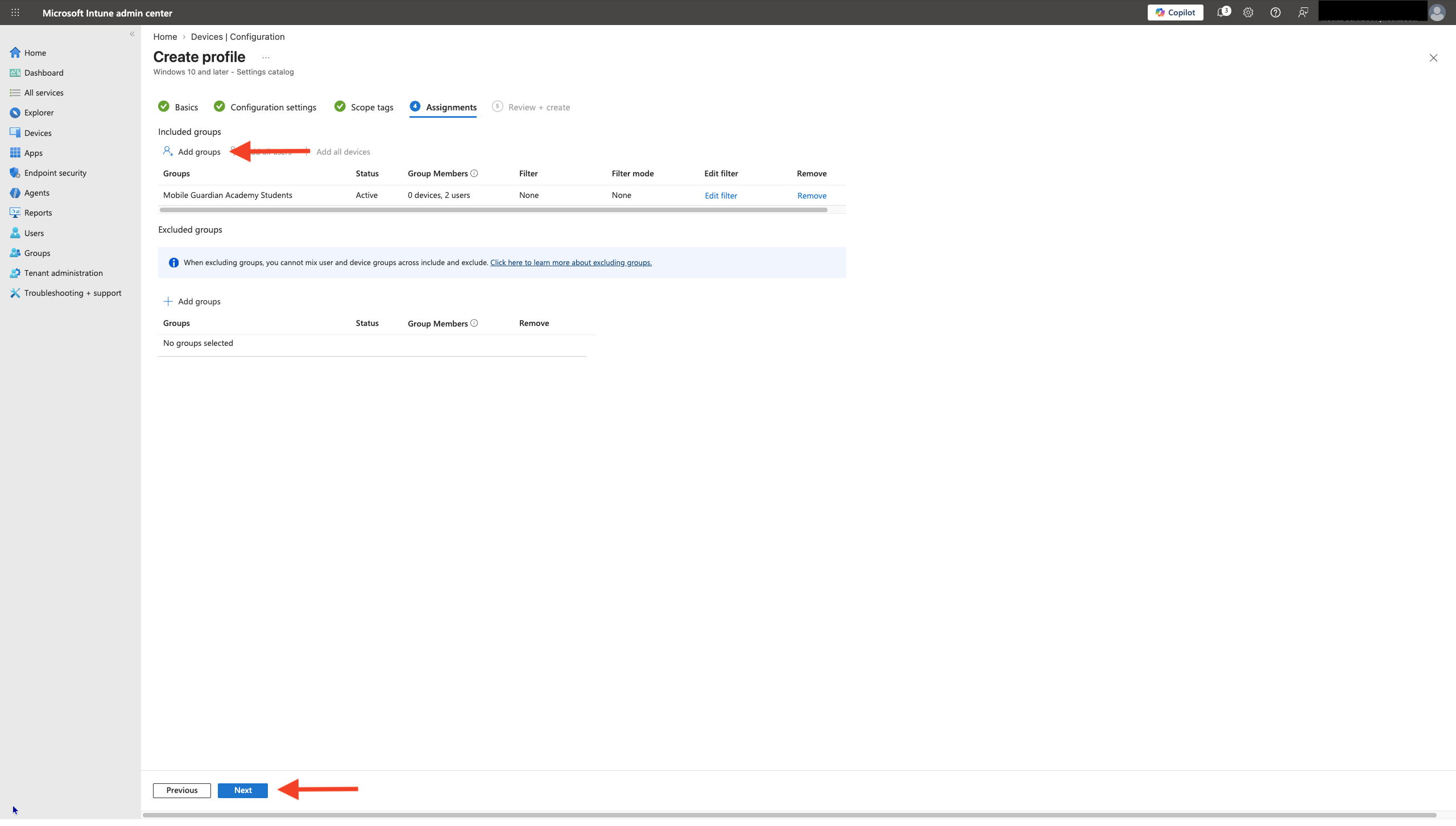

  • Under Assignments > Included groups > Add groups, select the group you want to apply the settings to (e.g., Students) > Select > Next.

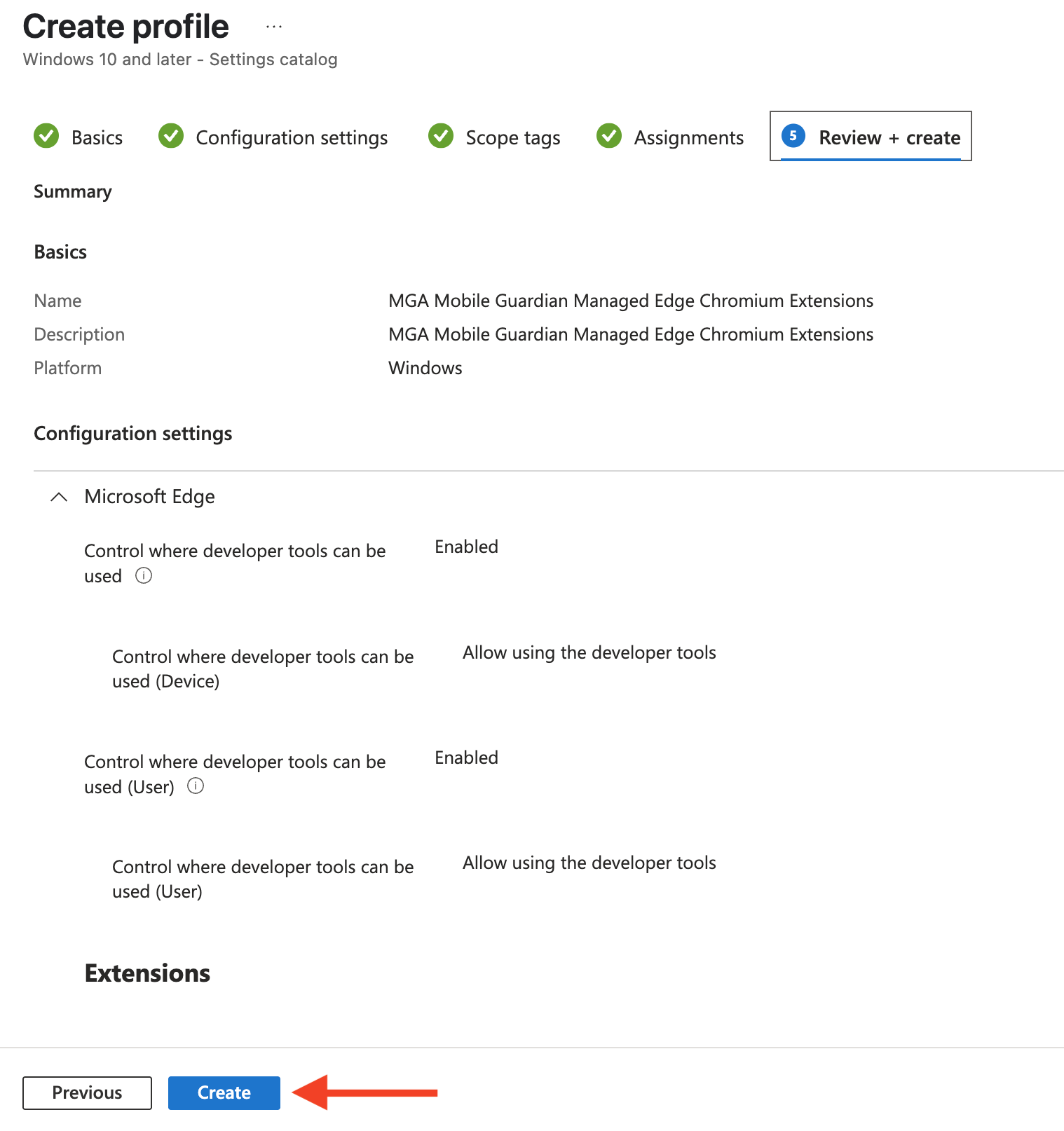

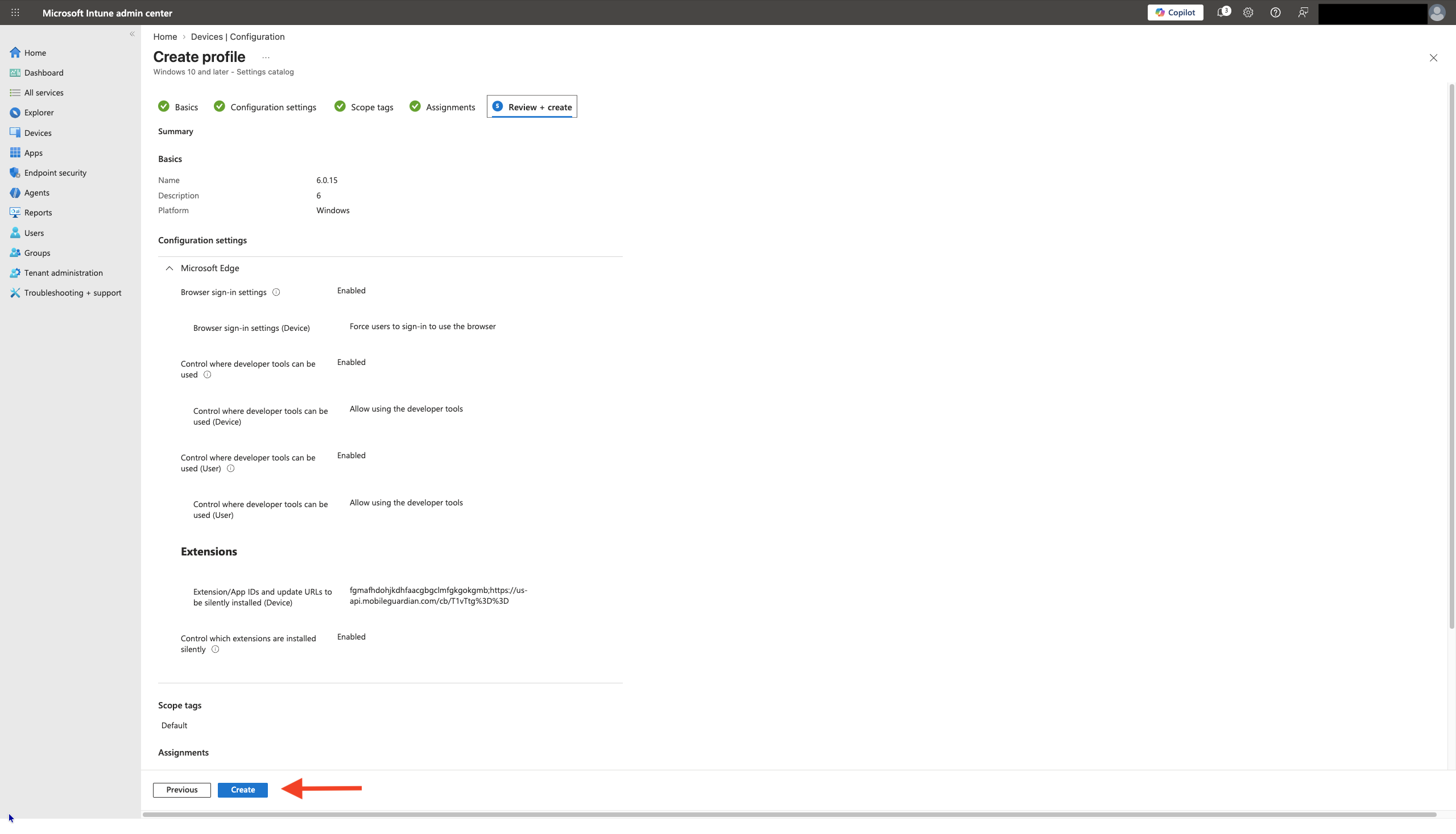

Review and Create:

  • Review your settings and click Create.

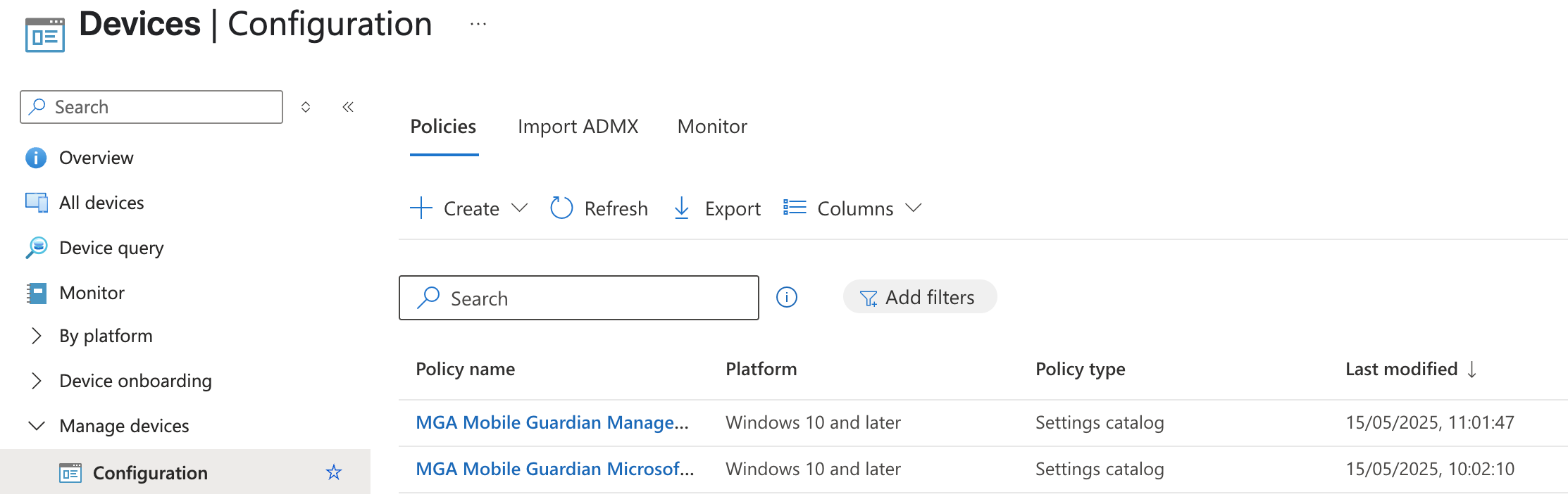

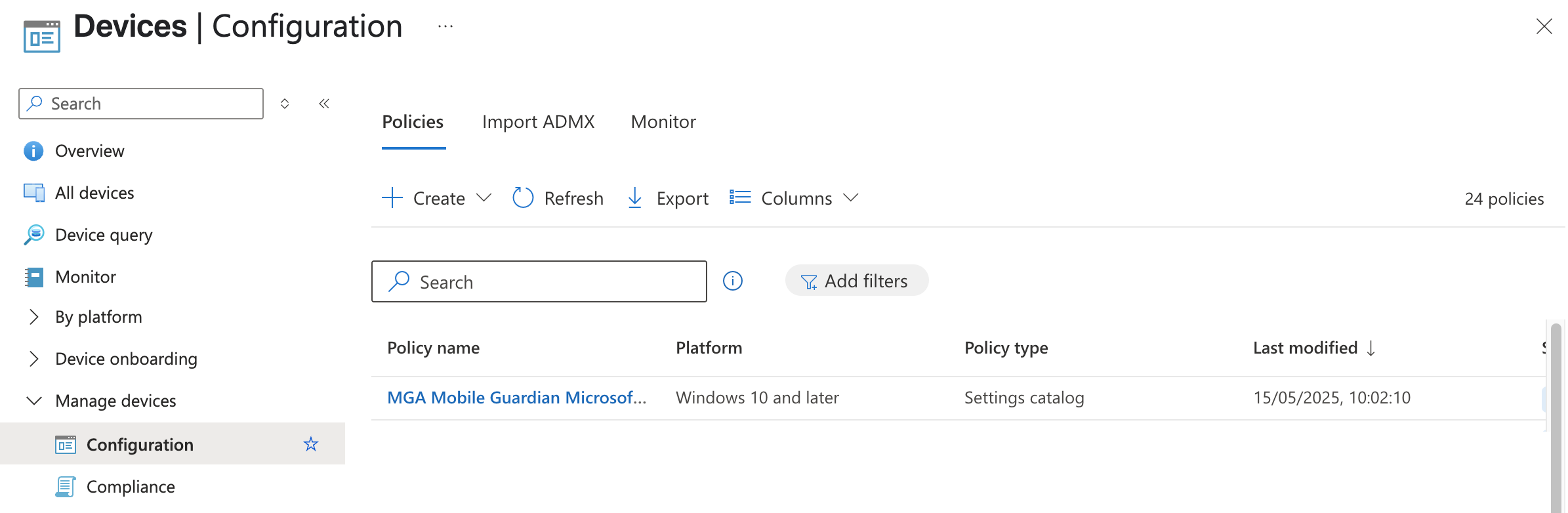

  • Refresh the page to see your newly created configuration profile.





Mobile Guardian Windows Helper Application

#Note on .Net Runtime:

If the device does not already have a .Net runtime installed, you will need to add the Windows Desktop Runtime as a prerequisite. Follow the same steps as described below.

Full Instructions:

Configuring Desktop Runtime

Sign in and Add App:

  • Sign in to the Microsoft Endpoint Manager admin centre.
  • Select Apps > All apps > Add.
  • Under Other app types, select Windows app (Win32) > Select.



Select App Package File:

  • On the Add app pane, click Select app package file.
  • Browse and select the Windows desktop runtime file with the extension .intunewin.
  • Click OK on the App package file pane.





Set App Information:

  • Name and description will be automatically populated.
  • Publisher: Microsoft Corporation
  • App Version: Enter the desktop runtime app version you uploaded.
  • Click Review + save.





Program Commands:

  • Install command: `windowsdesktop-runtime-6.0.15-win-x86.exe /install /quiet /norestart`
  • Uninstall command: `windowsdesktop-runtime-6.0.15-win-x86.exe /uninstall /quiet /norestart`
  • Click Next.



#Note: Please note that the highlighted needs to match the version of the Windows desktop runtime you uploaded.







Requirements:

  • Operating system architecture: 32-bit and 64-bit
  • Minimum operating system: Windows 10 1607
  • Click Next.





Detection Rules:

  • Select Manually configure detection rule.





  • Click + Add and configure as follows:
    • Path: `C:\Program Files (x86)`
    • File or Folder: `dotnet`
    • Detection method: File or folder exists









  • Click OK > Next.





#Note: There are no Dependencies or Supersedence settings required. Continue on clicking the Next button until you reach the Assignments tab.



Assignments:

  • Under Required, click + Add group and assign the application to the same groups as used for the configuration profiles.
  • Click Select > Next.







Review and Create:

  • Review your settings and click Create.
  • You will see a notification that your application has been created.





Configure Mobile Guardian Windows Helper Application

Add the Application:

  • Select Apps > All apps > Add.
  • Under Other app types, select Windows app (Win32) > Select.





Select App Package File:

  • On the Add app pane, click Select app package file.
  • Browse and select the Windows installation file with the extension .intunewin.
  • Click OK on the App package file pane.





Set App Information:

  • Some information may be pre-filled.
  • Complete any additional required fields.





Program Settings:

  • Set Device restart Behaviour > Intune will force a mandatory device restart.
  • Leave the rest of the default settings in place.





Requirements:

  • Set Architecture and Operating system.
  • Ensure Windows 10 1607 is chosen as the minimum operating system version.





Add Windows Desktop Runtime App:

  • Click + Add and configure as follows:
    • Path: `C:\Program Files`
    • File or Folder: `dotnet`
    • Property: File or folder exists
  • Click OK > Next.





Detection Rules:

  • Select manually configure and click + Add.
  • Configure as follows:
    • Path: `C:\Program Files (x86)`
    • File or Folder: `Mobile Guardian`
    • Detection method: File or folder exists
  • Click OK > Next.





Dependencies:

  • Click + Add > Select runtime app > Automatically install > Yes > Next.
  • Skip Supersedence > Next



Assignments:

  • Assign the application to the same groups as used for the configuration profiles.
  • Review your settings and click Create.

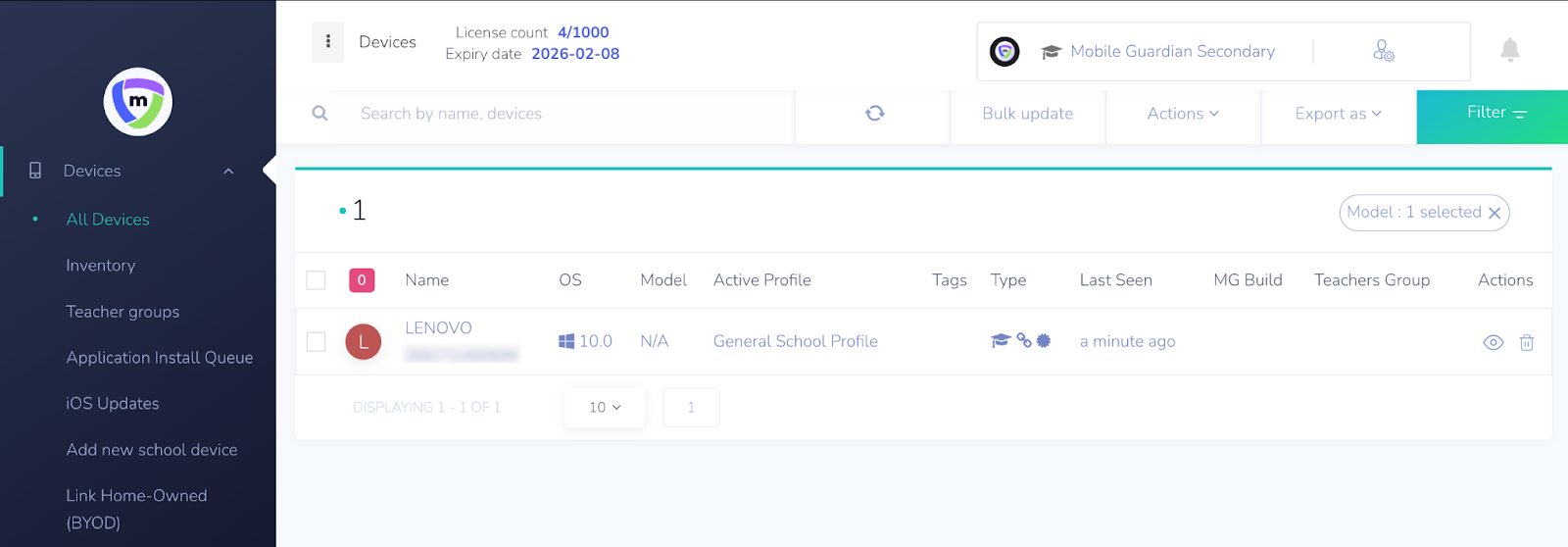

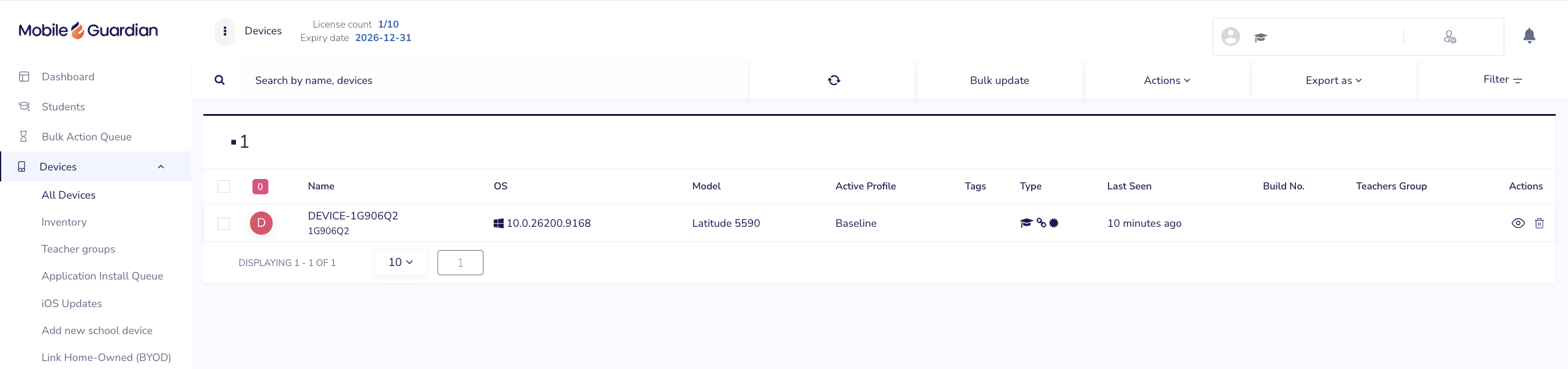

Device Setup

On New Device:

  • Sign in with a student account.

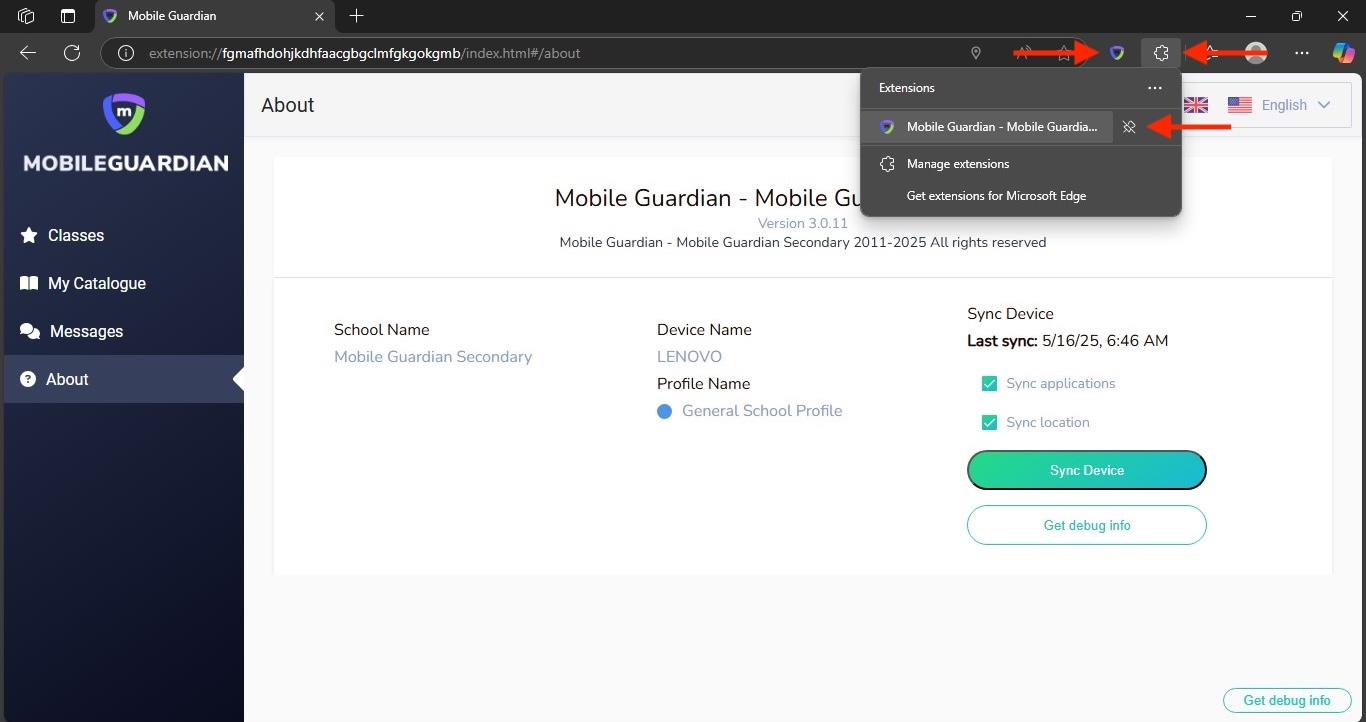

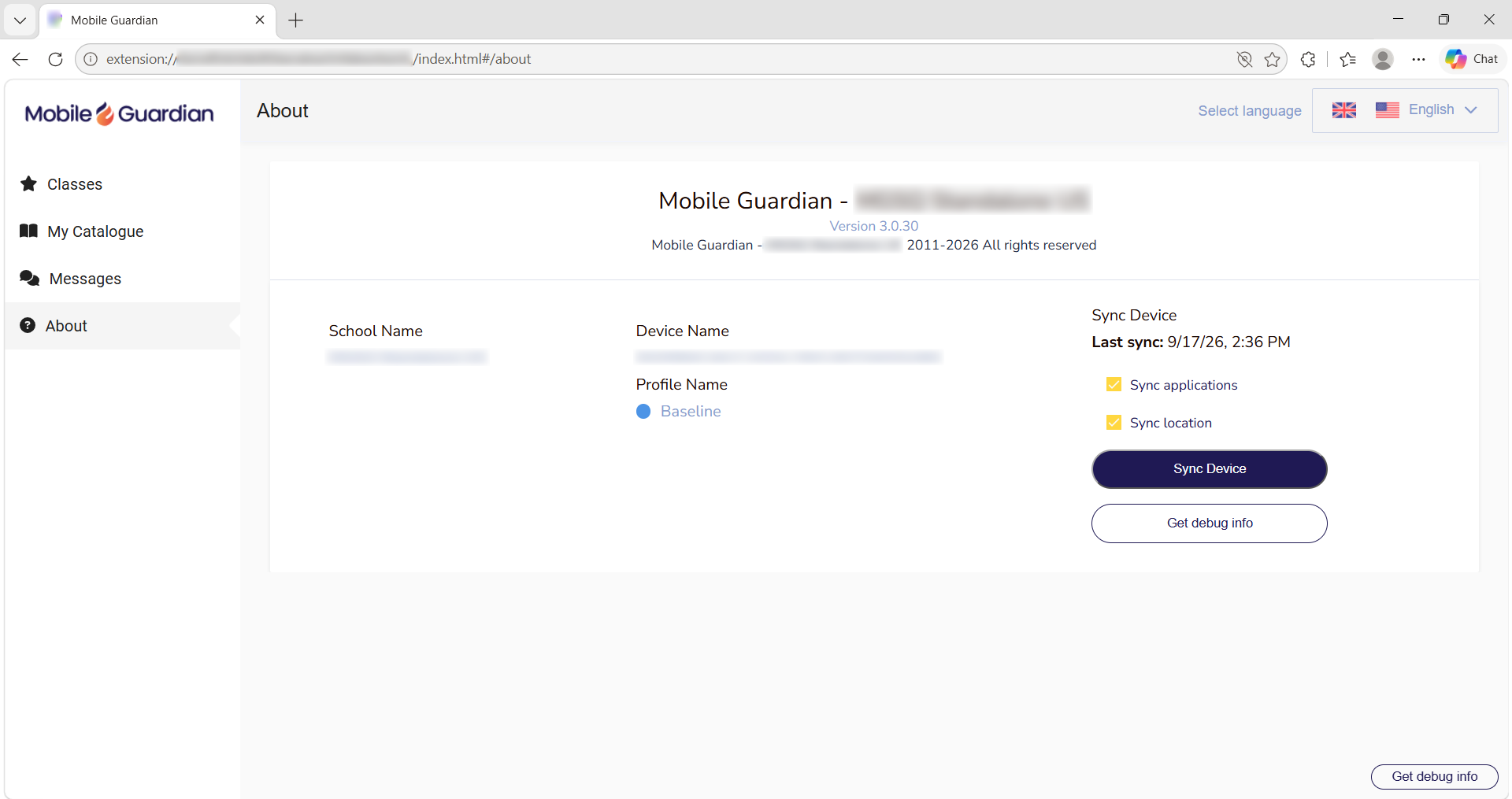

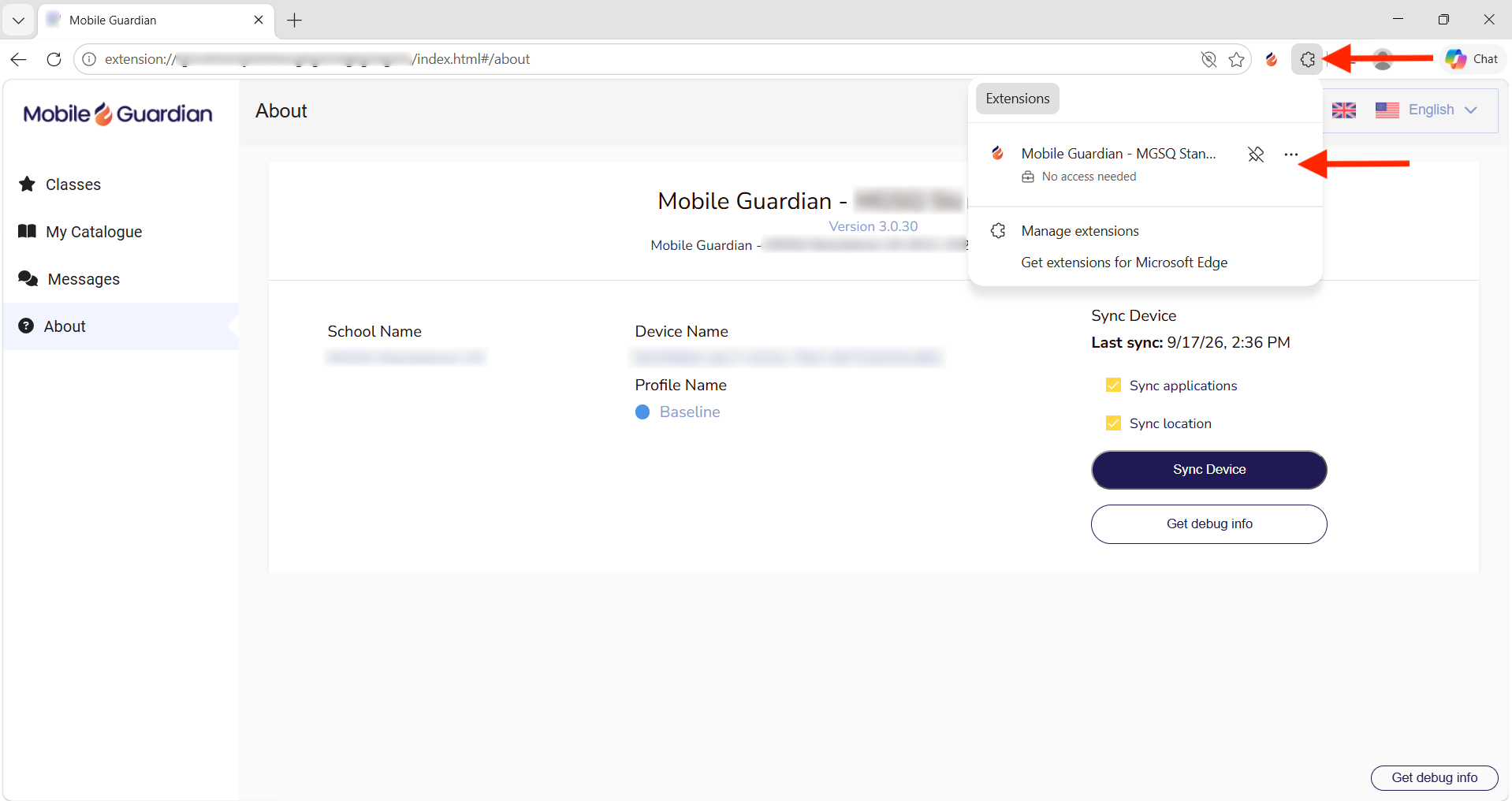

  • Mobile Guardian extension is installed on Edge by the configuration profile.
  • The extension calls API to fetch updated or new details from Azure.

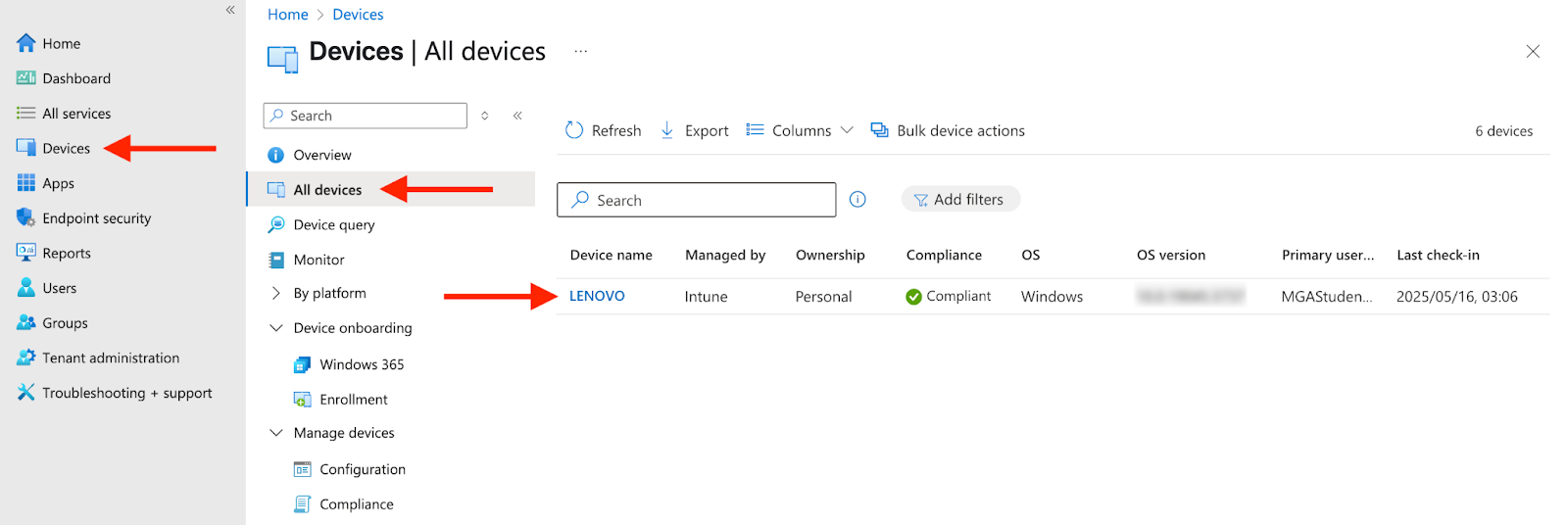

On Existing Device:

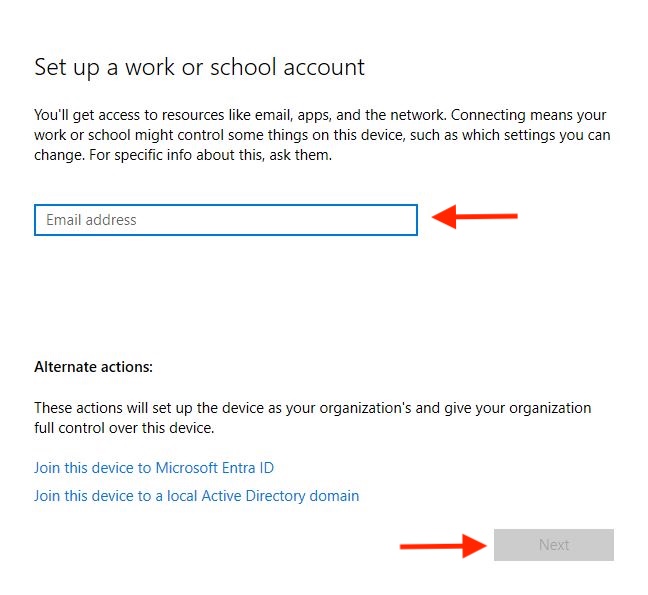

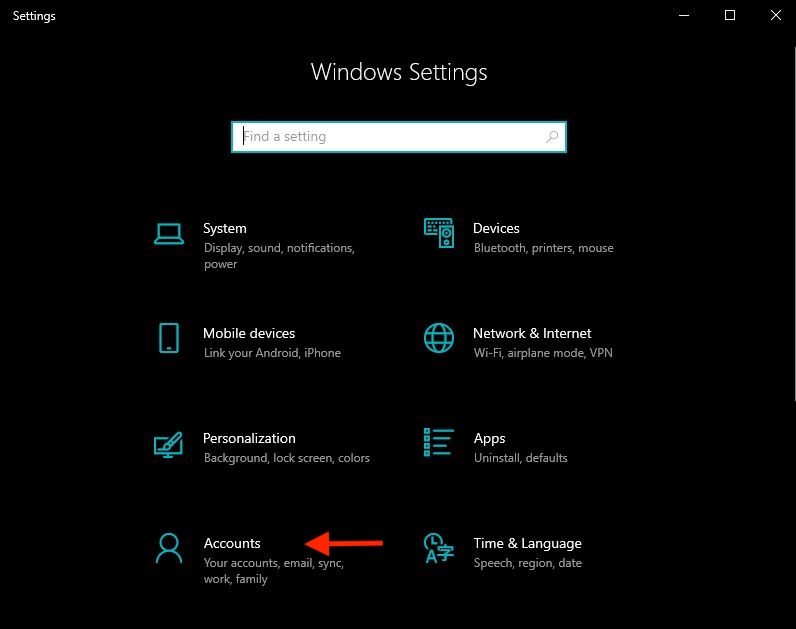

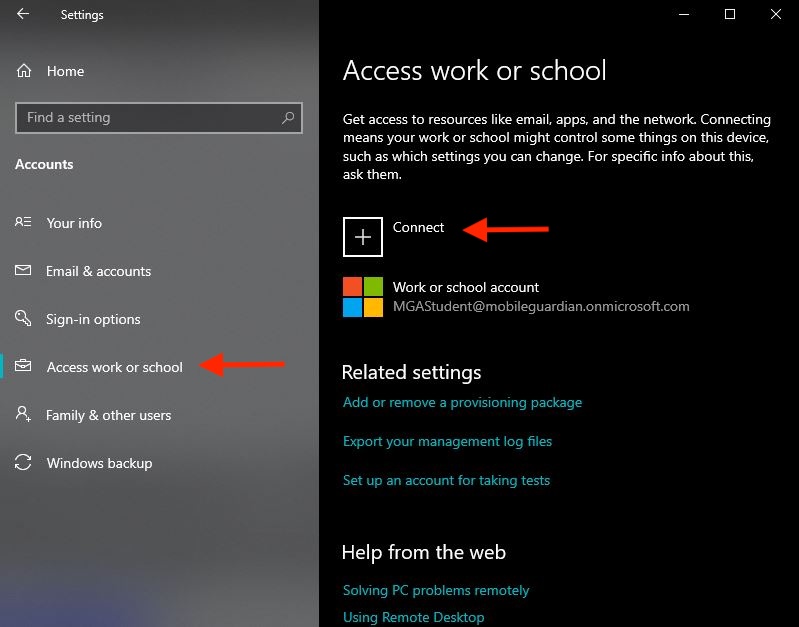

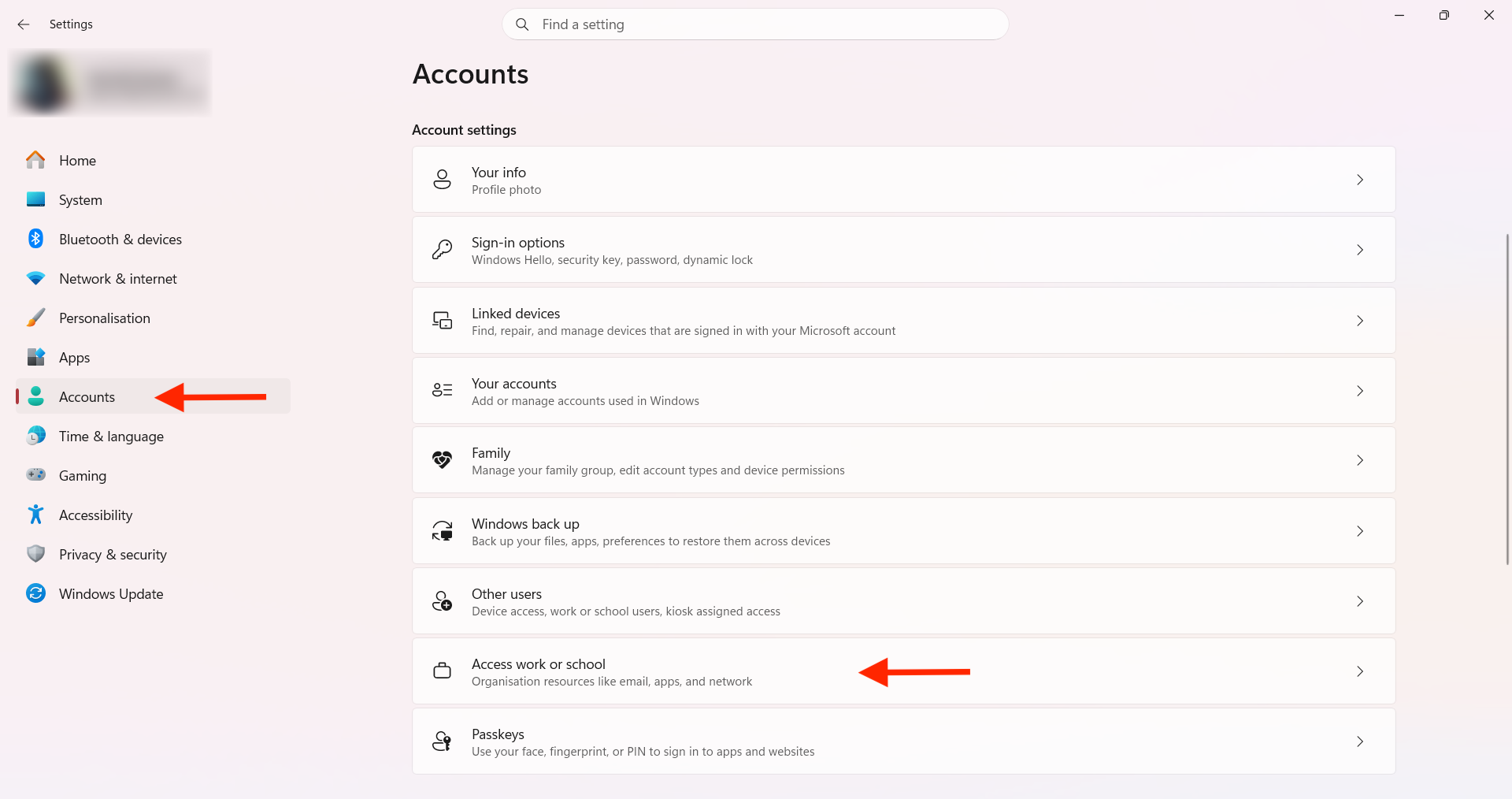

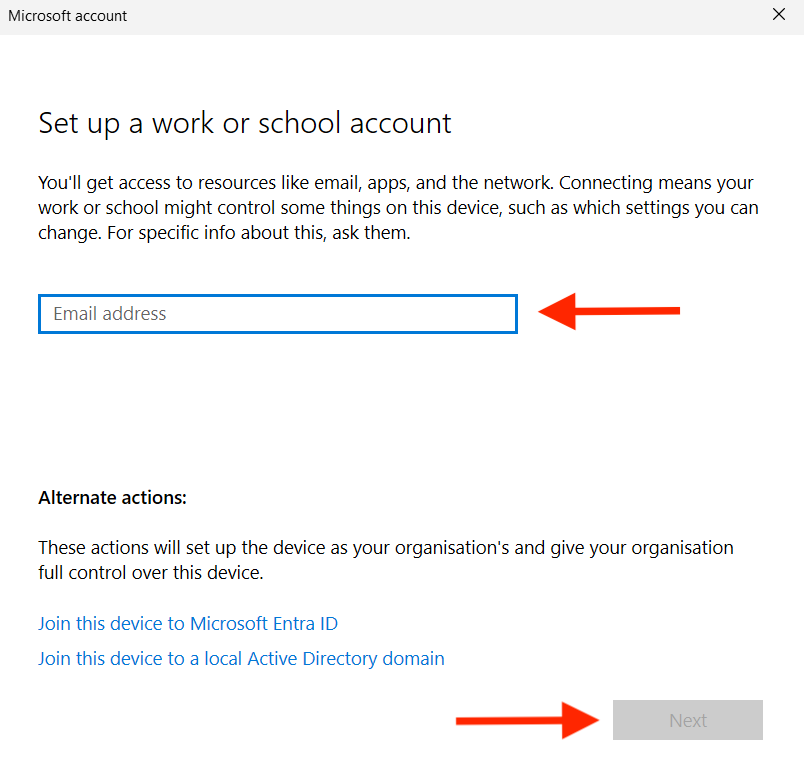

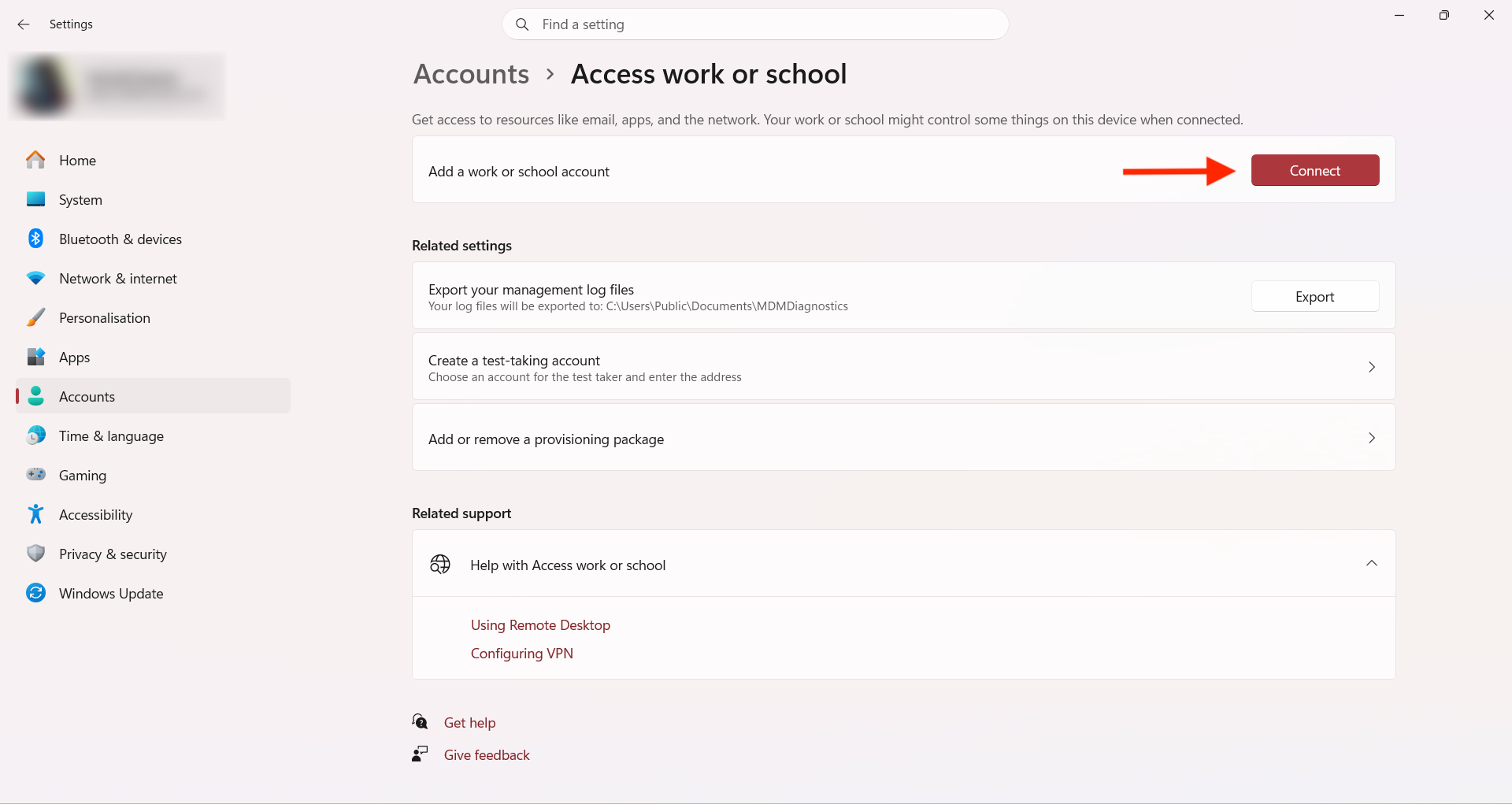

Add Azure AD domain under Accounts > Work/School.

Sign out and back in with an Azure student account.

The process is the same as for a new device.



Please let us know if you found this helpful!

Thanks for reading! 🙂
